Robotic Liquid Paint System

 Built by Turbo Spray Midwest

·       Chain on edge.

1.   80 ft of hollow pin 3"pitch chain

2.   AC VFD with brake and clutch

3.   Automatic Take up

4.   Index or continuous run

5.   Chain Guards

6.   Interface with PLC and programing

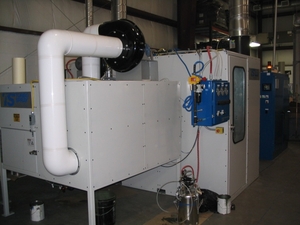

·       Enclosures

1.   9 ft wide x 8 ft deep x 10 ft high

2.   Man access doors / with viewing windows

3.   Robot with overhead gantry and (2) exhaust plenums, robot mounting and cable apparatus

4.   Hand spray set up

·       Fluid / Guns / Mixing area

1.   (2) #300 Turbo Spray analog automatic low pressure guns

2.   (1) Lot hosing, shut off's 3 ways, swivels, bulk head and manifolds

3.   (2) SST filters - 60 mesh

4.   (2) #918 SST air piloted fluid regulators (mounted on the robot)

5.   (2) Robot gun brackets

6.   Pneumatic control panel with:

- (2) Atomizing regulators and gauges

- (2) Fan controls

- (2) Air pilots for fluid regulators

- (2) Manual trigger switches

-(2) Atomizing on / off switches

·       Robot

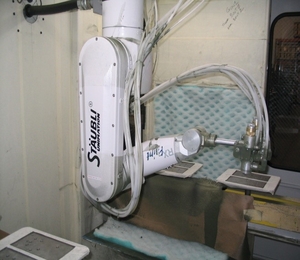

1.   Staubli RX60 manipulator (explosion proof)

2.   Staubli CS8 controller with teach pendant

3.   Valpaint software

4.   Fan / fluid modulator

·       Ovens

1.   (1) 5.5 ft x 5.5 ft

2.   (1) 5.5 ft x 10.5 ft

3.   Electric convection - recirculating

4.   250 degree (F) capability

5.   Multiple zone closed loopSCR Control

6.   50 K W electric coil with 1 HP  N.Y. blower

7.   Interface / program

·       Controls

1.   NEMA 12 enclosures

2.   AB503 processor with CT interface screen

Unit was purchased the end of 2007. Ran everyday from 2008 through 2011. Periodically since then.

Asking price: $250,000.
