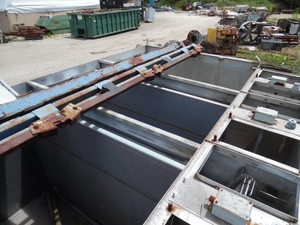

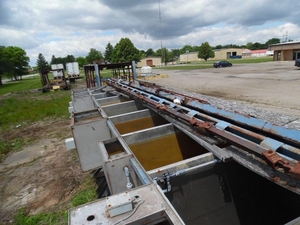

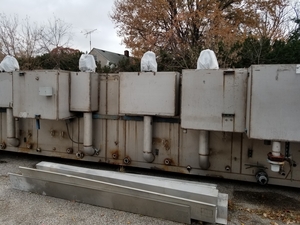

Used/Refurbished E-Coat Line

Part Size: 3’-6” High x 2’ (Direction of Indexing) x 6’ Long

Up to 20 Load bars per hour

Approximate Dimensions: 63’ Long x 11’ Wide (With Service Platform)

8 Stage Pretreatment System – Tanks all Stainless Steel

Stages 1,2 & 5 Heated with Maxon Tube – O- Therm gas burners

Bag Filters Stages 1 & 2

Stainless Steel E-Coat Tank with Three Post Rinses – Tanks Stainless Steel

Gusher Vertical Pumps – Process Stages

Controlled Power Rectifier

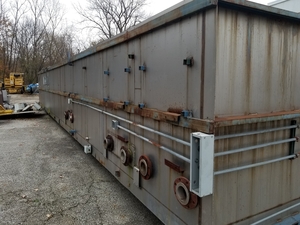

Gas Fire Bake Oven / Cooling Tunnel – Overhead

Automatic Load / Unload design With Webb conveyor

PLC Controlled

Has the ability to skip stages

Dismantled and ready for shipment

Ships in 5 Truck Loads

Call us if you have any questions: 608-630-3424
